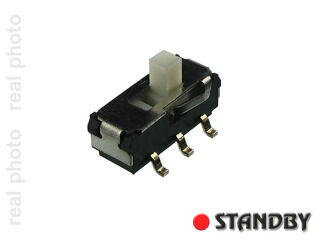

Schiebeschaler SMD

Operating force		200 ± 100 gf
Operating direction	Top push, Side push	Side slide
	Horizontal, Vertical	Horizontal
Slider Color		black
Operating life		10000
Water Proof
Travel	Full	2.0mm
Operating temperature range		-10 ~ 60 °C
Rating		DC 6V 0.3A
Dimensions		9.0mm * 3.5mm
Length		5.5mm
Timing		Non shorting
Circuit		2C - 2P
Electrical performance	Insulation resistance	100
	Voltage proof	100
	Contact resistance	100
Environmental performance	Cold	-25 ± 2 °C 96Hr
	Dry	85 ± 2 °C 96Hr
	Damp	60 ± 2 °C 96Hr
