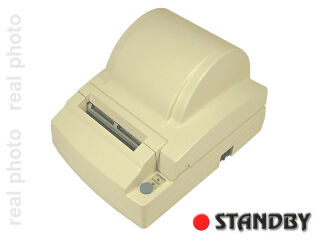

IDP-3221 Drukarka termiczna

  • Producent: CITIZEN
  • Kod producenta: IDP-3221-RF230
  • Dostępność: Jest
  • szt.
  • Cena netto: 405,69 zł 499,00 zł

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.



Print method Line thermal dot print method
Print width 72.192 mm/512 dots
Dot density Width: 0.141 mm, Length: 180 DPI (0.141 mm)
Printing speed 63.45 mm/sec.
(At maximum speed, print density level 2), (450-dot line/sec.)
Printing columns 42 columns (Font A) , 56 columns (Font B)
Printing size 1.41×3.39 mm (Font A) , 0.99×3.39 mm (Font B)
Line pitch 4.23 mm (1/6 inch)
Can be set with a command (See 10.2 "Command Details.")
Character types Alphanumeric, international characters, extended graphic
Bar code type UPC-A/E, JAN(EAN) 13-/18-column, ITF, CODE 39, CODE 128, CODABAR,
CODE 93
Paper Thermal paper roll : 80 + 0/- 1 mm×φ83 (max.) mm
(See Paper Specifications)
Interface Serial (RS-232C)
Input buffer 4 KB or 72 bytes (Selectable with the DIP switch)
Supply voltage
DC 24 V ±7%
Power consumption
100 W
AC adapter spec
Type 31AD-E  Rated input: AC 240 V, 50/60 Hz, 120 VA
Rated output: DC 24 V, 1.8 A

Weight
Main body: Approx. 1.3 kg; AC adapter: Approx. 0.45 kg
Outer dimensions 152 (W) × 201 (D) × 123 (H) mm
Operating temperature and humidity
5 to 40°C; 35 to 85% RH (No condensation)
Storage temperature and humidity
–20 to 60°C; 10 to 90% RH (No condensation)
Reliability
 Printing head life:
            Pulse resistance : 50 million pulses or more (Print rate 12.5%)
            Wear resistance : 50 km or more (With recommended thermal paper at
                                     normal temperature and humidity)
Auto cutter life:
            500,000 cuts (With recommended thermal paper at normal temperature and
            humidity)
Applicable standard *1 TUV, GS, CE Marking
