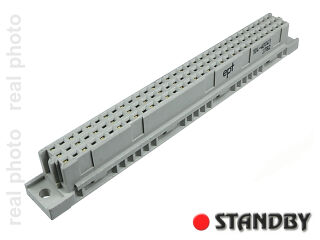

Female straight 48 pin type C
- Obserwuj produkt:
- Manufacturer: EPT
- Manufacturer's code: 104-40041
-
- pcs
- Net Price: $1.71 $2.10
| Contact row designation of male and female connectors | a b c |
| Operating temperature range | - 55°C to + 125°C |
| Max. operating current at ambient temperature (+ 20°C) | 1.5 A |
| Test voltage, 50 Hz, 1 minute | |
| Contact/contact (Urms) | 1000 V |
| Contact/Ground (Urms) | 1550 V |
| Contact resistance | < 20 mΩ |
| Insulation resistance |
> 106 MΩ |
| Engaging and seperating force for the complete, fully equipped connector |
< 45 N |
| Seperating force per contact (test measuring device) | > 0.15 N |
| Design female contact | Double contact |
| Insulator material | PBT glass filled, UL 94 V-0 PC fiber-glass reinforced, not combustible acc. to UL 94 V-1 PA glass filled, UL 94 V-0 |
