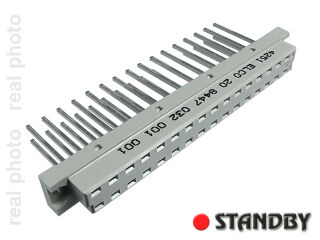

Female straight 32 pin type D
- Obserwuj produkt:
- Manufacturer: ELCO / AVX
- Manufacturer's code: 20 8447 032 001 001
-
- pcs
- Net Price: $5.35 $6.58
| Basic Grid | .200 (5,08) X .200 (5,08) |
| Insertion Force | 4.0 oz./ 1.11 N average per contact pair (9.0 lbs. / 40N max. for 32 contacts) |
| Withdrawal Force | Average per contact pair (.54 oz. / 0,15N min. per contact) |
| Contact Positions | 2 X 16 |
| Contact Resistance | 15 milliohms max. |
| Current Rating | 5.5 amperes @ 20°C max. |
| Insulation Resistance | 5,000 megohms min. at 500 VDC |
| Dielectric Withstanding Voltage | 1,550 VAC rms at sea level |
| Operating Temperature | -65°C to +125°C |
| Insulator Material | Polycarbonate (GF) |
| Pin Contact Material | Copper alloy |
| Wrap Post Dimension | 1,0 mm X 1,0 mm |
