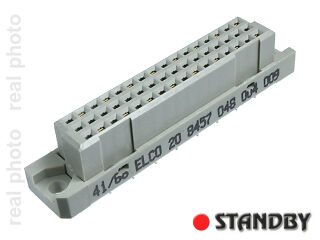

Female straight 16 pin type C/2

  • Obserwuj produkt:
  • Manufacturer: ELCO / AVX
  • Manufacturer's code: 20 8457 048 004 009
  • pcs
  • Net Price: $0.59 $0.72
Basic Grid .100 (2,54) X .100 (2,54) - .100 (2,54) X .200 (5,08)
Insertion Force 3.0 oz./ .83 N average per contact pair (20.23/ 90N max. for 96 contacts)
Withdrawal Force Average per contact pair (.54 oz. / 0,15N min. per contact)
Contact Positions 2 X 8
Contact Resistance 20 milliohms max.
Current Rating 3 amperes @ 20°C max. on connectors up to 96 contacts. 1 ampere max. on connectors from 100 to 201 contacts.
Insulation Resistance 5,000 megohms min. at 500 VDC
Dielectric Withstanding Voltage 1,000 VAC rms at sea level
Operating Temperature -65°C to +125°C
Insulator Material Thermoplastic 94 V-0 UL Rated
Socket Contact Material Phosphor bronze
Pin Contact Material Copper tin
Wrap Post Dimension .024 X .024 (0,6 mm x 0,6 mm)
Push-Out Force of Post in Insulator 3 lbs.
