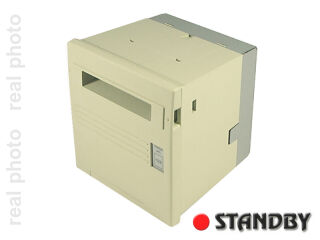

CBM-291 Drukarka termiczna

  • Producent: CITIZEN
  • Kod producenta: CBM-291-34F
  • Dostępność: Jest
  • szt.
  • Cena netto: 1 218,70 zł 1 499,00 zł

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.



ITEM CONTENTS
Printing method Line Thermal Dot Printing System
Print speed   50 mm / s (MAX)
Dot density 8 Dots / mm (Vertical / Horizontal)
Number of columns

Font A : 34 columns

Font B : 46 columns

Character size

Font A : 1.25 mm × 3.00 mm (10 × 24 + 2 dot space)

Font B : 0.88 mm × 2.13 mm ( 7 × 17 +2 dot space)

Character type

Alphanumeric, international characters

Bar code type

UPC-A/E, JAN (EAN) 13 / 8 columns , ITF

CODE 39, CODE 128, CODABAR

Line pitch

4.23 mm (1/6 inch) (Selectable by command)

Paper   Thermal Roll Paper Paper Width : 58 mm Roll Diameter : Ø50 mm or less
Interface

Parallel (conforms to Centronics) or Serial (conforms to RS-232C)

(Selectable by dip switch)

Input buffer     4 K bytes
Paper end detection Equipped (Printer stops printing when roll paper runs out completely.)
Auto-Loading function

Equipped (Printer automatically feeds paper when paper sensor detects paper

in paper inlet.)

International Character

U.S.A., France, Germany, U.K., Denmark 1,2, Sweden, Italy,

Spain, Japan, Norway (Specified by command)

Auto paper cutter

(Only CBM-291)

Printer automatically cuts paper by command.

Partial cut (One tear point left) and Full cut are available by command.

Supply voltage

5V ± 5 % Stand-by : Aprrox.0.2A Printing : Approx. 0.2A

24 V ± 5 % Stand -by : Approx. 10mA Printing : Average : 1.8 A(Peak approx. 6A)

Operating environment

5 ∼ 40°C 35 ∼ 85 % RH (No condensation)

Storage environment

-20 ∼ 60 °C 10 ∼ 90 % RH (No condensation)

Outer dimension

106 mm (W) × 109 mm(H) × 99 mm(D)

Weight

CBM-290: Approx. 460g (Main body only)

CBM-291: Approx. 600g (Main body only) Mounting backet: Approx. 50g

Safety standard

UL, CUL, TÜV. GS

EMI

FCC: Class A , VCC I: Class A

(These standards are applied only for the printer which is used with our exclusive

AC Adapter.)

Reliability

Print head life : Pulse resistance 50 million pulse (printing ratio 12.5%)

Wear resistance 30 km (at normal temperature and humidity,

with recommended paper)

Auto cutter life : 300,000 cuts (CBM-291)
