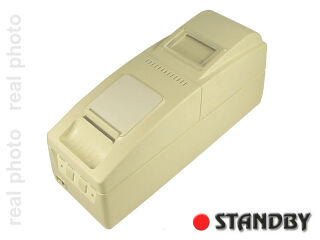

CBM-262 Drukarka termiczna

  • Producent: CITIZEN
  • Kod producenta: CBM-262-RJ100
  • Dostępność: Jest
  • szt.
  • Cena netto: 1 003,25 zł 1 234,00 zł

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.

W komplecie zasilacz na 230V.



Item Content Remarks
Printing Method Line Thermal Printing Method
Printing Width

54mm, 432 dots

(Total dots in head: 448 dots)

Non-printing area:

2 mm on each end.

Dot Density 8 dots/mm (Horizontal/Vertical)
Paper Feed Pitch 0.125mm
Printing Speed 62.5 mm/sec. (500 dot line/sec) at maximum speed
Number of Printing 36 Columns (Horizontal 12 × Vertical 24 Font A)
Columns 48 Columns (Horizontal 9 × Vertical 24 Font B)
Types of Characters Alphanumeric, International Characters
Emulations ESC/POS™ compatible
Bar Code Types UPC-A/E, JAN(EAN)13 Columns/8 Columns,
ITF CODE39, CODABAR

Line Interval 4.23 mm (1/6 inch)
Can be set by commands. Min. 1/203 inch.

Paper Thermal roll paper 58 × φ83 mm
φ83 mm (See paper specifications.)

Interfaces RS-232C/Centronics  Factory Option
Input Buffer 72 Bytes/8K Bytes
(Set by the operation panel.)

Power Supply Voltage AC120V±10% 60Hz
 AC230V±10% 50/60Hz
Factory Option
Power Consumption 42W ASCII Slide Pattern Printing
Weight Approx. 2.3 kg Main unit only
External Dimensions 128 × 359.5 × 162.5mm
Operating Temperature and Humidity 5~40°C  30~80%RH(There should be no condensation.)
Storage Temperature and Humidity – 10~60°C    10~90%RH
Reliability Print head life:
   Pulse resistance: 50 million pulses
   (Page coverage: 12.5%)
   Wear Resistance 30 Km
   (Normal temperature and humidity,
   using the recommended paper)
Printer Mechanism: MCBF 5 million lines
Auto Cutter Life: 300,000 cuts
