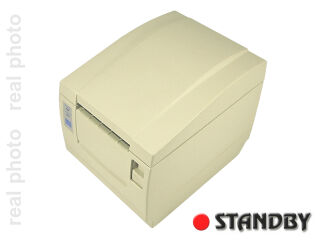

CBM-1000 Drukarka termiczna

  • Producent: CITIZEN
  • Kod producenta: CBM-1000-RF230S
  • Dostępność: Jest
  • szt.
  • Cena netto: 405,69 zł 499,00 zł

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.



Print method Line thermal dot print method
Print width 72 mm/576 dots, (54 mm/432 dots)*1
Dot density 8 × 8 dots/mm (203 dpi)
Print speed 100 mm/sec (Fastest, print density level 2), (800 dot lines/sec)
Number of print columns Font A: 48/42/36/30 columns (12 × 24)
Font B: 64/56/48/40 columns (9 × 24)
Character size Font A: 1.25 × 3.00 mm; Font B: 0.88 × 3.00 mm
Character type Alphanumeric characters, International characters, Codepages PC437, Katakana, PC850, PC860, PC863, PC865, PC852, PC866, PC857, and Windows codepage
Logo registration/print Capable of registering user-defined characters and logos into flash memory.
NV bit map data area 256K bytes
Types of bar code UPC-A/E, JAN (EAN) 13/8 columns, ITF CODE 39, CODE 128, CODABAR, CODE 93
Line spacing 4.23 mm (1/6 inches); selectable using commands.
Paper roll Thermal paper roll: 80 mm (58 mm) × φ 83 mm
Thermal Label paper roll : 80 mm(58 mm) × φ 83 mm
Label detection None, Label interval detection / Black mark detection
Interfacing Serial (RS-232C)
Input buffer 4K bytes (72 bytes selectable with a DIP switch)
Supply voltage AC 230 V ±10%
Power consumption 100 W (Max)
AC adapter spec. Rated input: AC 120 to 240 V, 50/60 Hz, 120 VA —
Rated output: DC 24 V, 1.9 A
Type 31AD-E
Weight Approx. 2.0 kg
Outside dimensions 145 (W) × 190 (D) × 157 (H) mm
Operating temperature and humidity 5 to 40°C; 35 to 85% RH (No condensation)
Storage temperature and humidity –20 to 60°C; 10 to 90% RH (No condensation)
Reliability Print head life:   Pulse resistance 1 × 108 pulses (Print ratio 12.5%)
                       Wear resistance 100 Km (At normal temperature/humidity
                       with recommended paper used)
Auto cutter life: 500,000 times of cutting (At normal temperature/humidity
                       with recommended paper used)
Safety Standard
TUV, GS, CE marking
